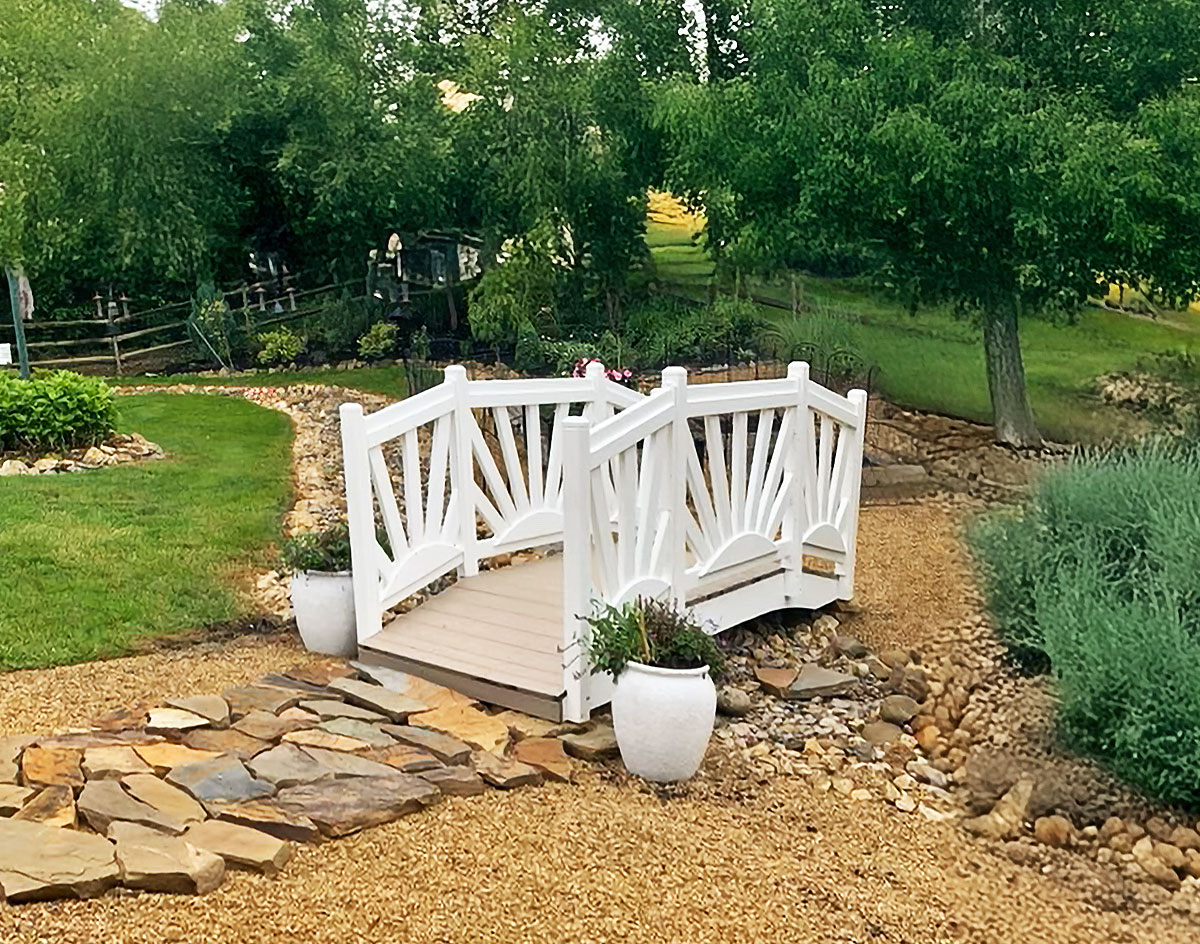

Treated Pine Sunrise Bridge
Specifications:
  • Ships as an Easy to Assemble Kit
  • 2" x 6" Decking and 2" x 12" Beams
  • Weight Capacity of 2,200 lbs
  • Add Extra Beams for More Stability
  • Built with #1 Grade Treated Pine
  • Rounded & Sanded Edges
  • Optional Stain/Sealer Application
  • Custom Sizes Available
  • Made in the U.S.A.
Click price of desired size below to add item to your cart.
6'
Length
Width: 36" 48" 60" 72"
Item #: FWW360 FWW460 FWW560 FWW606
Weight: 479 524 593 664
Max Span: 56" 56" 56" 56"
Bridge Weight: 347 393 448 510
Weight Capacity: 5800 5200 5000 4800
Posts: 8 8 8 8
Railings: 6 6 6 6
Beams: 2 3 4 5
Cross Braces: 1 2 3 4
Height To Top of Railing: 27" 27" 27" 27"
Height To Top of Post: 33" 33" 33" 33"
Width Between Posts: 33" 45" 57" 69"
Total Price: $1399 $3199 $1699 $1899
8'
Length
Width: 36" 48" 60" 72"
Item #: FWW380 FWW480 FWW580 FWW680
Weight: 536 627 730 817
Max Span: 80" 80" 80" 80"
Bridge Weight: 403 457 531 573
Weight Capacity: 5100 4680 4400 4600
Posts: 8 8 8 8
Railings: 6 6 6 6
Beams: 2 3 4 5
Cross Braces: 2 4 6 8
Height To Top of Railing: 27" 27" 27" 27"
Height To Top of Post: 33" 33" 33" 33"
Width Between Posts: 33" 45" 57" 69"
Total Price: $1899 $2199 $2299 $2599
10'
Length
Width: 36" 48" 60" 72"
Item #: FWW310 FWW410 FWW510 FWW610
Weight: 650 135 787 881
Max Span: 104" 104" 104" 104"
Bridge Weight: 407 531 606 691
Weight Capacity: 4360 3500 3260 3020
Posts: 8 8 8 8
Railings: 6 6 6 6
Beams: 2 3 4 5
Cross Braces: 3 6 9 12
Height To Top of Railing: 27" 27" 27" 27"
Height To Top of Post: 33" 33" 33" 33"
Width Between Posts: 33" 45" 57" 69"
Total Price: $1999 $2699 $2999 $3299
12'
Length
Width: 36" 48" 60" 72"
Item #: FWW312 FWW412 FWW512 FWW612
Weight: 752 832 935 1047
Max Span: 128" 128" 128" 128"
Bridge Weight: 546 606 691 788
Weight Capacity: 3650 3220 3400 3070
Posts: 8 8 8 8
Railings: 6 6 6 6
Beams: 2 3 4 5
Cross Braces: 4 8 12 16
Height To Top of Railing: 27" 27" 27" 27"
Height To Top of Post: 33" 33" 33" 33"
Width Between Posts: 33" 45" 57" 69"
Total Price: $2699 $3199 $3499 $3899
14'
Length
Width: 36" 48" 60" 72"
Item #: FWW314 FWW414 FWW514 FWW614
Weight: 866 946 1083 1213
Max Span: 148" 148" 148" 148"
Bridge Weight: 623 691 788 898
Weight Capacity: 3210 2670 2520 2360
Posts: 10 10 10 10
Railings: 8 8 8 8
Beams: 2 3 4 5
Cross Braces: 4 8 12 16
Height To Top of Railing: 27 27" 27" 27"
Height To Top of Post: 33 33" 33" 33"
Width Between Posts: 33 45" 57" 69"
Total Price: $3299 $3699 $4399 $4599
16'
Length
Width: 36" 48" 60" 72"
Item #: FWW316 FWW416 FWW516 FWW616
Weight: 912 1072 1232 1380
Max Span: 172" 172" 172" 172"
Bridge Weight: 710 788 898 1024
Weight Capacity: 2810 2340 2520 2200
Posts: 10 10 10 10
Railings: 8 8 8 8
Beams: 2 3 4 5
Cross Braces: 5 10 15 20
Height To Top of Railing: 27" 27" 27" 27"
Height To Top of Post: 33" 33" 57" 33"
Width Between Posts: 33" 45" 57" 69"
Total Price: $3599 $3999 $4799 $5199
